AiPi-Eyes-Rx Multi-Functional Development Board
Introduction Video
- Introduction Video: View
1. Overview

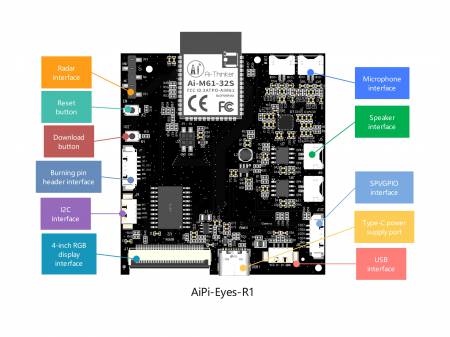

AiPi-Eyes-R1/R2
- AiPi-Eyes-R1/R2 are 4-inch RGB display driver boards specially designed by Ai-Thinker's open-source team for the Ai-M61-32S module. The display features a resolution of 480*480 pixels, supports capacitive touch, and allows USB camera integration.
- AiPi-Eyes-R1 is equipped with an external ES8388 audio chip, supporting dual-channel audio input and output.
- AiPi-Eyes-R2 uses a built-in CodeC, supporting single-channel audio input and output.
- The Ai-M61-32S module supports WiFi6 and BLE5.3, with rich peripheral interfaces including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and GPIO. It integrates an SPI screen interface, DVP camera interface, reserved TF card slot, and exposed USB interface for USB camera connection.
2. Development Resources
- User Manual
- AiPi-Eyes-R1/R2: Download
- Schematics
- PCBA Resources
AiPi-Eyes-R1 Online PCB Project: View
AiPi-Eyes-R2 Online PCB Project: View
AiPi-Eyes-R1 PCBA Files: Download
AiPi-Eyes-R2 PCBA Files: Download
- Source Code and Firmware
Test Firmware Source Code: View
AiPi-Eyes-R1 Test Firmware: Download
AiPi-Eyes-R2 Test Firmware: Download
