TB Series Module Special
Where to Buy: Alibaba
1. Product Introduction
- Key Features

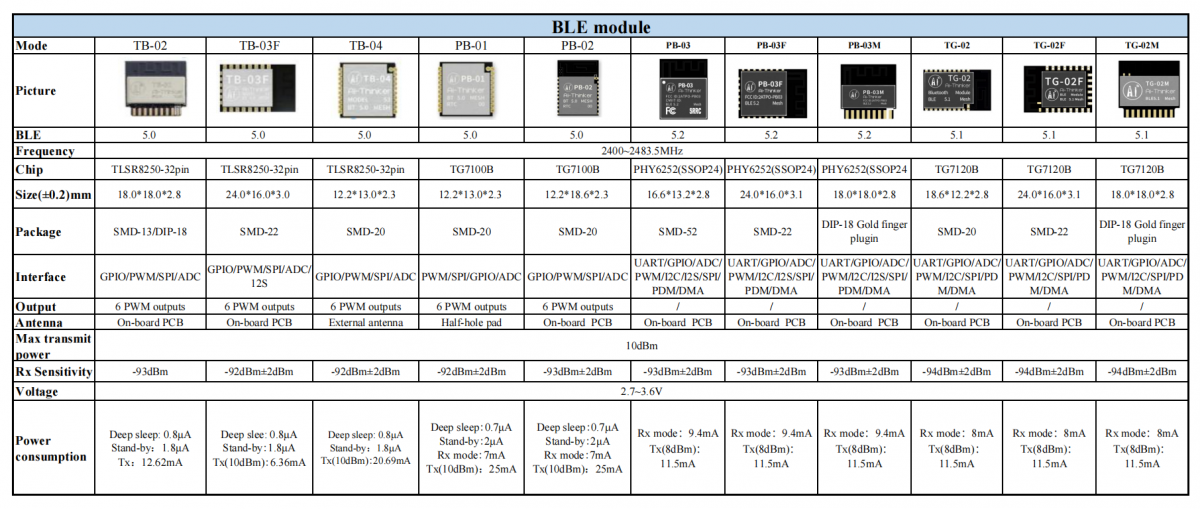

TB Series
Ai-Thinker Co., Ltd. designs universal Bluetooth IoT modules. These BLE 5.0 and SIG Mesh compliant modules enable direct smartphone-based Mesh networking and are compatible with major smart speakers (e.g., Tmall Genie). They support applications including smart lights, sockets, air conditioners, and other home appliances.
2. About Modules
| Modules | Datasheets | Module PCB Footprints | Schematic |
|---|---|---|---|
| TB-01 | View | - | - |
| TB-02 | View | Download | - |
| TB-03F | View | Download | - |
| TB-04 | View | Download | - |
| TB-05 | View | Download | - |
| TB-02-Kit(SMD) | - | - | View |
| TB-02-Kit(DIP) | - | - | View |
| TB-03F-Kit | View | - | View |
| TB-04-Kit | View | - | View |
- Importing ASCII Files to Altium Designer: Download【无英文】
3. Firmware Management
| Module Model | Firmware Build | Firmware Description | Version | Download Link |
|---|---|---|---|---|
| TB-02/03F/04 | Build 1268 | BLE AT Firmware | V0.9 | Download |
| TB-02/03F/04 | Build 1939 | BLE AT Firmware | V2.0.5 | Download |
| TB-02/03F/04 | Build 1183 | Private Mesh AT Firmware | V0.5 | Download |
4. Certification Related
| Moudles | Certificate | Link |
|---|---|---|
| TB-02 | Tmall Genie | View |
| TB-02 | SRRC | View |
| TB-03F | SRRC | View |
| TB-05 | SRRC | View |
| TB Series | CE (RED) | View |
| TB Series | FCC | View |
5. Compliance & Testing
- Hardware Reliability Report
| Modules | Report |
|---|---|
| TB-02 | View |
| TB-03F | View |
| TB-04 | View |
| TB-05 | View |
