AiPi-LoRaBoard

Introduction Videos

• Master AiPi-UNO-ET485 + LoRaBoard with the UP 主！Remote Temperature and Humidity Monitoring at Your Fingertips!
• Perfect Combination of AiPi-UNO-ET485 Development Board and Light Sensor! Simplify Data Collection!

1. Overview

AiPi-LoRaBoard

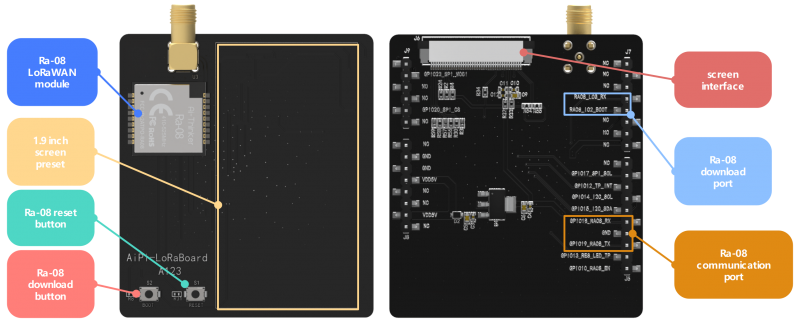

• AiPi-LoRaBoard is an expansion board designed for the AiPi-UNO-ET485 development board, featuring the Ra-08 module and a 1.9-inch MIPI-DBI capacitive touchscreen.
• The Ra-08 module operates in the 410MHz~525MHz frequency band and is compatible with LoRa modules such as Ra-01/SC and Ra-02. It comes with a default 433MHz rubber duck antenna (communication distance untested). Replacing with the Ra-08H allows operation in the 803MHz~930MHz band.
• The 1.9-inch screen uses a MIPI-DBI interface with 170*320 pixels and supports capacitive touch.

2. Development Resources

- User Manual

• AiPi-LoRaBoard Usage Guide with AiPi-UNO-ET485: Download

- PCBA Resources

• AiPi-LoRaBoard Schematic: Download

• AiPi-LoRaBoard JLCPCB Open Source Project: View

- Factory Firmware

• Ra-08 Firmware (Master/Slave Integrated): Download

• AiPi-UNO-ET485 Firmware: Download

- Source Code

• Ra-08 Source Code: Uploading...
• AiPi-UNO-ET485 Source Code: View
